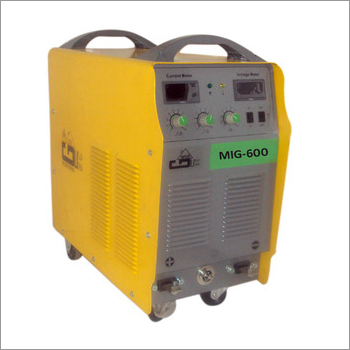

CO2 Welding Machine

CO2 Welding Machine
CO2 Welding Machine
Product Code : 08
Product Description

Committed for accomplishing unprecedented growth in this domain, we are considered as one of the pioneer manufacturers and exporters of CO2 Welding Machine. We do not compromise with the quality of welding machine; hence these are manufactured by our skilled professional employing supreme quality materials & components. Ideal for welding tough, tensile and metallic materials, these welding machines are broadly used in diverse workshops. Clients can buy CO2 Welding Machine from us at unbeatable prices.



  • Easy to use
  • Excellent stability
  • Unmatched quality

Further Details:

Mig 400 Amps Igbt Welder

Our portable inverter IGBT MIG welding series are designed for extremely quick, efficient and neat welding.

The dual IGBT and nanometer reactor technology conforms to international standards that ensure deeper and stronger weld penetration with a high, duty cycle than ordinary competition.
With automatic welding interface Exchangeable function of Co2 and MAG Deep Welding, pool narrow groove, insensitive to rust Can be equipped with cable in various lengths for customers
Capability to neatly weld Steel, Bronze Alloys, Stainless Steel etc Suitable for welding plates > 1.0 mm Adapts IGBT technology and stable output current Adapts nanometre reactor, easy arc start, uninterrupted arc while wire is feeding

Key Specifications/Special Features:

  • Delicate, portable and multi- functional design
  • HF arc start, simple operation, strong welding penetration
  • With adjustable arc force MMA
  • With digital displayed TIG (>250)
  • Easily arc start, stable current, high speed of dynamic-response
  • Noise free
  • Little spark, beautiful welding seam
  • Can weld many sort of metal such as stainless steel, alloy steel and copper

Model                     GIM-600

Input power        3 Phase 415±10%

Frequency           50/60 Hz

Rated input power capacity 25 KVA

Rated input current (A)      25

Rated output current (A)   600

Output current adjustment range (A) 50-600

Output voltage adjustment range (V) 16-50

Rated output voltage (V)       35

Rated duty cycle % 25         60

Efficiency (%)                85

Power factor          0.93

Arc ending voltage (V)     16-36

Weight (Approx.)  44 KG

Measurement(Approx.)  620X383X545 MM

Insulation class    H

Protection class   IP21, IP23

Wire feeding coil 0.8 X 1.0 X 1.6

Wire feeding speed (m/min) 3-15

Diameter of input cable (mm2) >4×4

Welding cable (mm2)      >35
