Air Plasma Cutting Machine

Air Plasma Cutting Machine
Air Plasma Cutting Machine
Product Code : 19
Product Description

Air Plasma Cutting Machine

A Revolution in Cutting Systems,Inverter Based Portable Welding Machines delivers high quality, surety and conformity to give you every reason to smile. The exactitude of quality standard IS: 1851 lies in its world class designing and engineering that took 3 years for our engineers to master. The result, a aerospace manufacturing high performance innovation that saves you more, earns you more and lets you enjoy all the more.

Function and features:
Cutting manner: Cutting with compressed air.

Scope of application:
Petroleum Industry, Chemical Industry, Power Supply, metallurgy, shipbuilding,boilers, pressured vessels, pipes, vehicles and aerospace manufacturing.

Key Benefits:

  • Excellent welding performance:
  • Smooth cutting edge and high cutting precision
  • Stable output, small cutting tension and deformation
  • Machine models above 70 adopts non-contact arc starting
  • Superior instantaneous arc, able to easily cut the unsettled, rusted and painted metal
  • Integrity protection system: under voltage lockout, over-current protection, overheating,overload protection to ensure the welding machine’s safety, durability and reliability

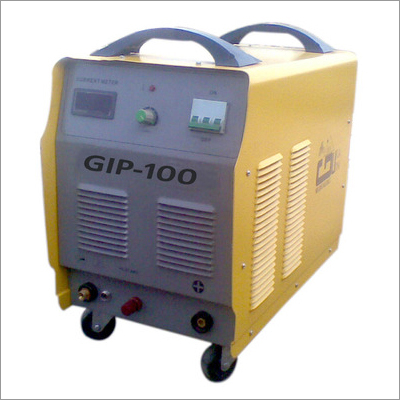

MODEL                                GIP-100

Input power voltage      3 phase 415V ±10%
(frequency)                  50/60Hz

Rated input power capacity  15 KVA

No-load voltage                 270V

Output current adjustment range  20-100

Rated output voltage         120V

Rated duty cycle              60%

No-load consumption       100 W

Arc-starting                  Non-contact

Efficiency                      85%

Power factor                 0.93

Weight (Approx.)         34 KG.

Measurement (Approx.) 558X609X330 mm

Insulation class            H

Protection class        IP21 S, EN, IS 1581, IEC, CE

Air Pressure            6 kg mm2 (200 Ltrs/Min)

Maximum cutting thickness   20 mm.
